DRS-510

DRS-510

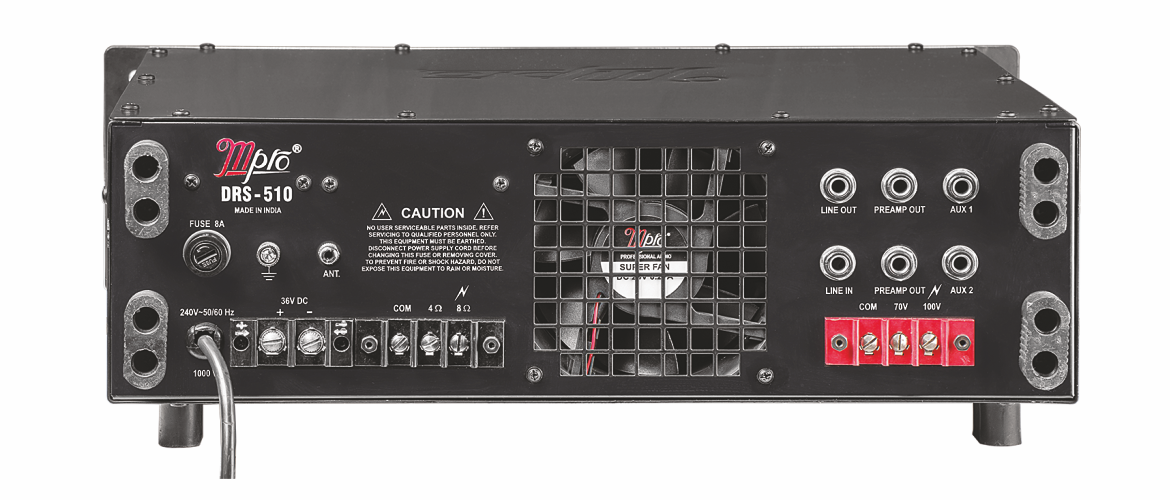

Product Image

Product Image

Features
Specifications

2 Mic / 2 AUX Input
MP3 Digital Player with USB, SD & Bluetooth Input
Pre Amplifier for recording programs
Line Input for connecting the output from any external PA Mixer Amplifier
Resettable circuit breaker for protection against overload and short circuit protection
2 way power source 240V AC/36V DC
Box Speaker/Driver Unit Selector Switch
Provided with Fan to Air Cool Circuit
AUX-I is directly controlled by master
AUX-2 is directly controlled by both AUX-2 volume control and Master

Power Output: 750 RMS at 30% THD (Rated) 600 RMS at 20% THD (Rated) 500 RMS at 10% THD (Rated)
Output Regulation: ≤ 2 dB no load to full load at 1kHZ
Input Channels: 2 x Mic. 0.65 mV/4.7 kΩ (Mic source impedance 50 Ω to 1 kΩ) 2 x Aux. 100mV/50 kΩ Line Input 1 V/ 50 kΩ
Frequency Response: 50 - 15000 Hz ± 3dB
S/N ratio: 60 dB
Tone control Switch at Box Speaker Position Switch at Driver Unit Position: Bass:±10dB at 100Hz Treble:±10dB at 10KHz Bass:-10dB at 100Hz Treble:±10dB at 10KHz
Pre-amp Output: 200 mV /600Ω
Line Output 1: 1 V /1 kΩ
Output Taps for Speaker Matching: 4 & 8Ω (for direct connections)
Power Supply: AC 220-240V, 50/60Hz DC: 36 V (3 x 12 V Car Battery)
Protection: AC Fuse 8 Amp. (T 8 A L); DC: 20 Amp. Circuit Protector
AC Power Consumption: 1000VA
DC Power Consumption: 8A
Dimensions (W x D x H): 485 x 465 x 155 mm
Weight: 24.300 Kg
